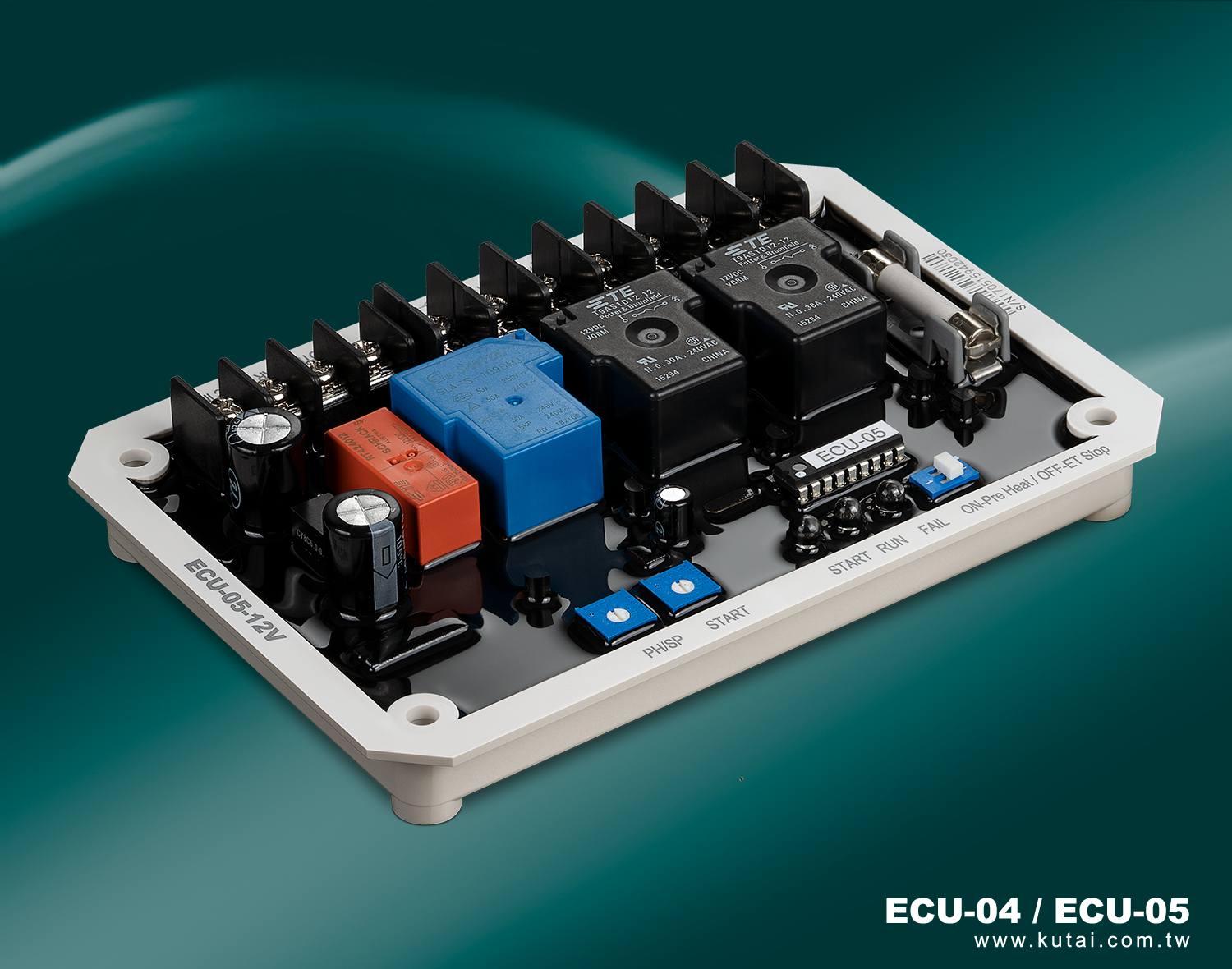

KUTAI AUTO START CONTROL UNIT FOR MANUAL KEY START GENERATORS - 24V SYSTEM # EC-04

Auto-Start module for Manual Key Start Gensets
The ECU-04-24VDC, 100Vac to 240Vac Adds auto start or remote start capability to any key start genset.
Features

• Microprocessor-based engine control unit adds remote start and stop capability from an external Start / Stop signal
• Terminals connect directly to key start switch, requiring no change to wiring
• Compact size and low power consumption
• For use with both diesel and gasoline engine generators
• Multiple Cranking attempts in case of failed start
• Circuits protected with 94-V0 Epoxy for installation in harsh environments
• Able to control " Energize to Stop " engines (ECU-05)
• Adjustable time delay potentiometers – " Engine Preheat " time or Engine Shutdown timer (depending on mode) and Starter Cranking time
• User defined auxiliary output indicates whether engine is running (open)

Specifications

• DC Supply: 24 Vdc (ECU-XX-24V)
• Alternator Input Range: Voltage 100 to 240 Vac, Frequency 50/60 Hz
• Static Power Consumption: Less than 0.03 watts
• Ignition & Accessories Signal Output:30 Amp @ 12/24 Vdc
• Start Signal Output: 30 Amp @ 12/24 Vdc
• Pre-Heat or Carburetor Signal Output: 30 Amp @ 12/24 Vdc
• Auxiliary Signal Output: 20 Amp @ 12/24 Vdc

Time Delay Setting And Alarm Indicator

• L1: Remote start activated indicator LED
• L2: Generator running indicator LED
• L3: Start fail indicator LED
• VR1: Engine Pre-Heat time adjustment (1 to 25 seconds)
• VR2: Starter cranking time adjustment (1 to 25 seconds)
• SW: Function selectable switch

     SW On

• ECU-04    For use on diesel engine with Pre-Heat

    SW Off

• ECU-04    For use on gasoline engine with carburetor

Enviroment:

• Operating Temperature: -20 to +60 °C
• Relative Humidity: Max. 95%

Physical Specifications

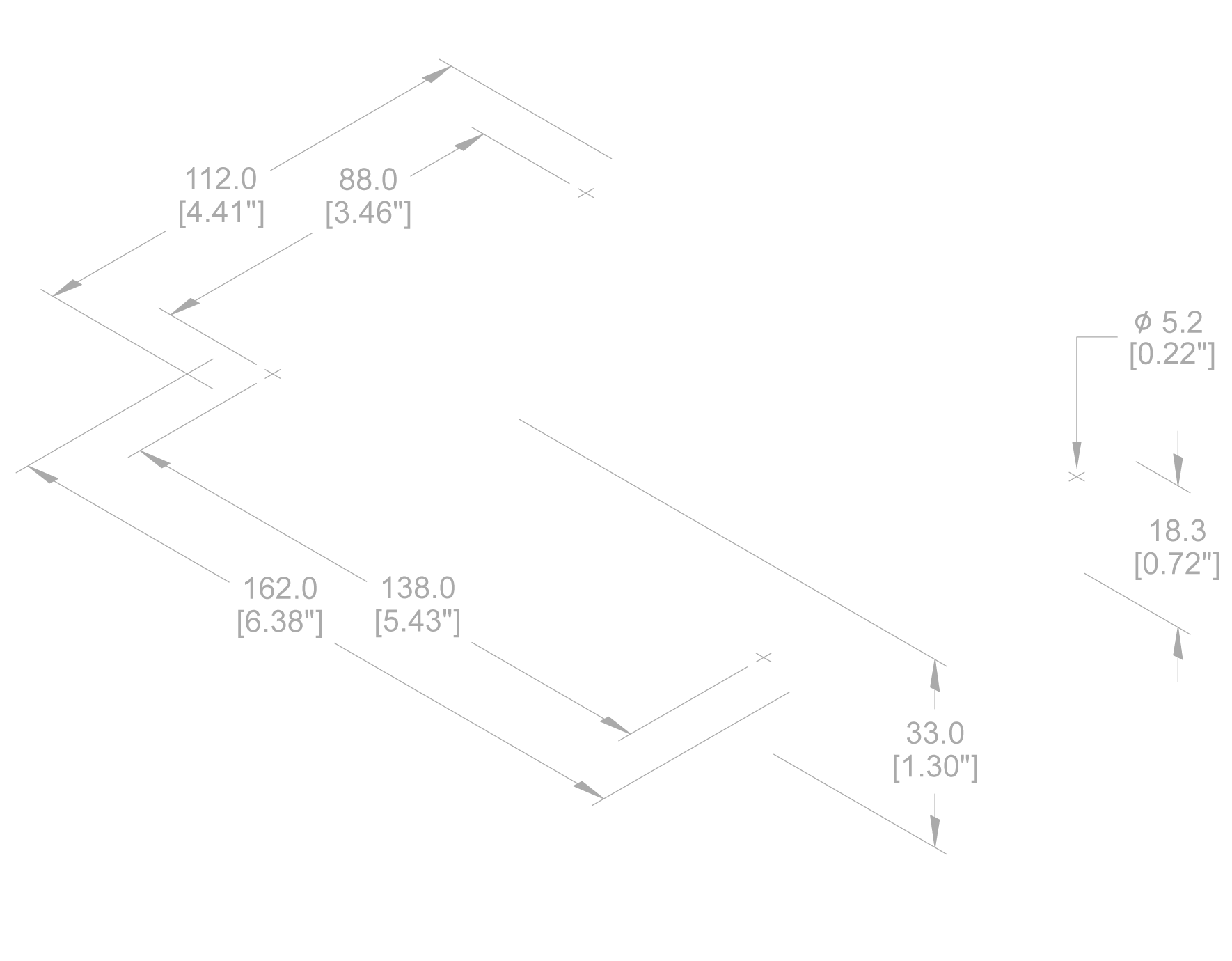

• Dimension: 162.0 (L) x 112.0 (W) x 33.0 (H) mm
• Weight: ECU-04 368g +/-2% , ECU-05 373 g +/-2%
