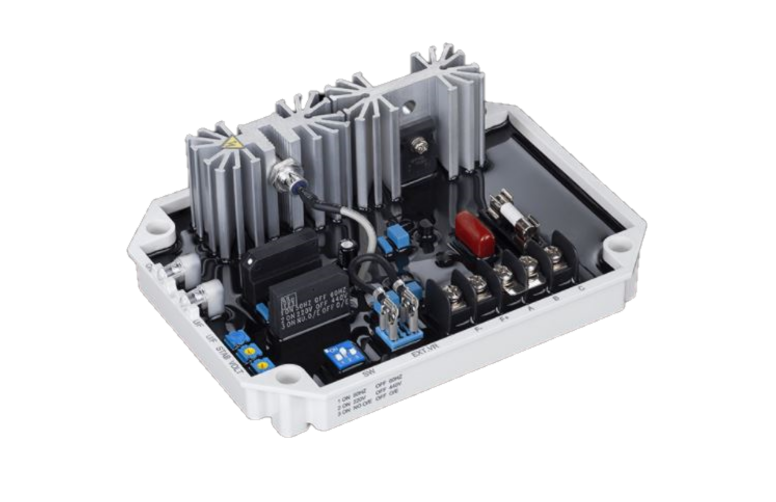

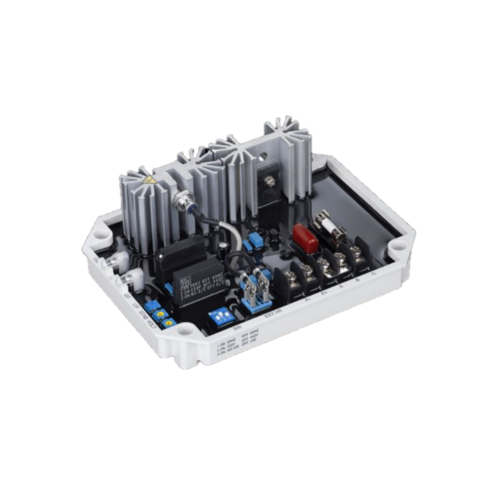

Kutai HYBRID UNIVERSAL ANALOG DIGITAL AUTOMATIC VOLTAGE REGULATOR 7AMP # ADVR-073

ADVR-073 is an Hybrid Analog/Digital Voltage Regulator. It's desigined with CPU inside which eliminates voltage drifting that caused by temperature variation. This designed has greatly improves the reliability of AVR. ADVR-073 has over excitation and loss of sensing shutdown protections which will prevent AVR from damaging in overload situation.

• Voltage regulation less than +/-0.5%
• 220/380/440/480 Vac programmable input
• Rugged compact design
• With under frequency protection
• Over excitation protection
• Soft start voltage ramping
• EMI suppression
• Built-in high capacity 8Amp fuse

Specifications

• Sensing Input: Voltage 170 to 520 Vac 1 phase 2 wire DIP switch selectable / Frequency 50/60 Hz DIP switch selectable
• Power Input: Voltage 100 to 300 Vac 1 phase 2 wire
• Output: Voltage Continuous 63 Vdc Max. 90 Vdc @ 220 Vac input / Current Continuous 7A / Intermittent 15A for 10 seconds / Resistance Min. 9 ohms / Max. 100 ohms
• Voltage Regulation: Less than +/-0.5% (with 4% engine governing)
• Build Up Voltage: Residual voltage at power input terminal more than 5 Vac 25 Hz
• Over Excitation Protection: 78 +/-5 Vdc @ 220 Vac 5 seconds
• External Voltage Adjustment: 7% with 1K ohms 1 watt potentiometer
• Static Power Dissipation: Max. 8 watts
• Soft Start Ramp Time: 3 seconds
• EMI Suppression: Internal electromagnetic interference filtering
• Voltage Thermal Drift: 0.03% per °C change in AVR ambient
• Under Frequency Protection (Factory Presets): 50 Hz system presets knee point at 45 Hz / 60 Hz system presets knee point at 55 Hz

AVR Control Functions

• VOLT: Voltage adjustment
• STAB: Stability adjustment
• U/F: Setting under frequency protection knee point

Indication LED

• O/E: Over excitation protection indicator
• U/F: Under frequency protection indicator

Environment

• Operating Temperature: -40 to +60 °C
• Storage Temperature: -40 to +85 °C
• Relative Humidity: Max. 95%
• Vibration: 3.0 Gs @ 100 to 2K Hz

Physical Specifications

• Dimensions: 150.0 (L) x 115.0 (W) x 51.0 (H) mm
• Weight: 440 g +/-2%
